Flexible Coupling

Flexible Coupling

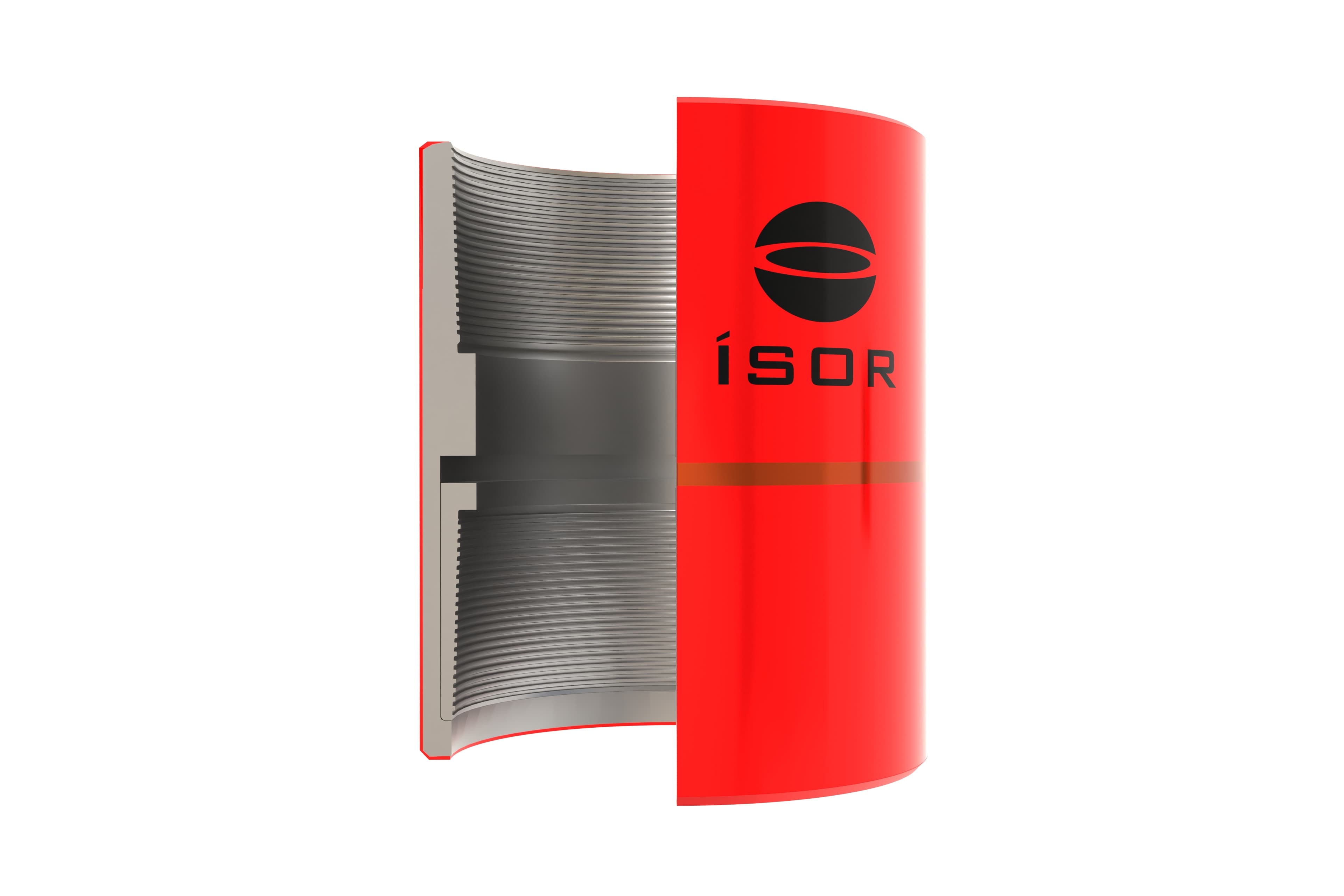

Within ÍSOR, Iceland GeoSurvey, a novel patented technology of Flexible Couplings for casings in geothermal wells has been in development since the year 2015. Its goal is to mitigate casing failures in production casings of geothermal wells, thereby increasing reliability of the downhole structure.

By allowing displacements of each casing joint in the production casing, the risk of casing failures as a result of constrained thermal expansion is minimized by limiting thermal straining of the casing material.

Research and development of Flexible Couplings:

  • Design, prototyping (9 5/8”) and testing at ambient temperatures within the EU H2020 supported project GeoWell (2016-2019).

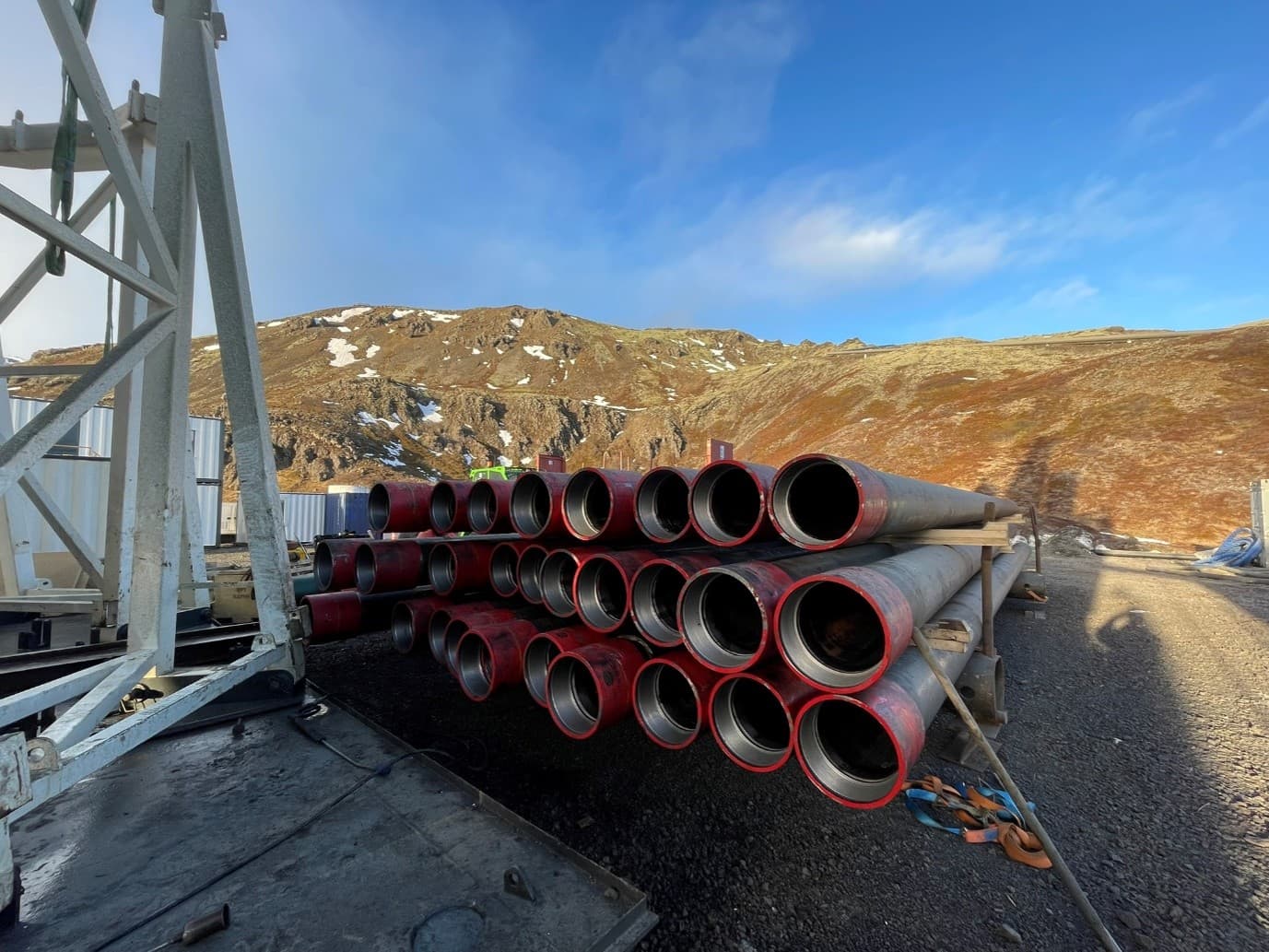

  • Prototype design for larger diameter casings (13 3/8”), build and testing, as well as field testing in a geothermal well in Iceland within the EU H2020 supported project DEEPEGS (2015-2019).
  • Market analysis, risk analysis and testing in relevant environment in a surface experiment demonstration by connecting to a HT geothermal well in Iceland within the GEOTHERMICA supported project GeConnect (2018-2021).
  • Casing technology for increased well integrity for superhot wells in the EU Horizon Europe project COMPASS (2022-2025).

Downhole logging data from Icelandic high-temperature geothermal wells shows that casing failures have been found in approximately 1 in 4 wells.

  • Around 1 in 10 wells have shown casing tensile failure.
  • Constrained thermal expansion of cemented casings results in damaged casing material and can lead to severe casing failures.
  • Increased structural integrity is assured by allowing movement of each casing joint instead of generating excessive forces.
  • Leads to more secure downhole structure and increases likelihood of successful project saving millions in investment cost and future revenues.
  • The patented Flexible Coupling is a solution that improves well integrity by allowing expansion of the casing.
